Central Kowloon Route
– Kai Tak West (CKR-KTW; Contract No. HY/2014/07) (hereafter called “the Project”)
covers part of the construction of the Central Kowloon Route (CKR).
The Project comprises
the follow works:
·
50x30m
access shaft with noise enclosure at Ma Tau Kok (MTK);
·
100m long
cut-and-cover (C&C) tunnel at MTK;
·
Demolition
and re-provisioning of MTK Public Pier;
·
160m long
underwater tunnel (UWT) (Stage 1);
·
210m long
UWT (Stage 2);
·
60m long
C&C tunnel at Kai Tak;
·
130m long
depressed road and 200m long underpass at Kai Tak;
·
390m long
underground tunnel ventilation adit at Kai Tak;
·
Seawall
demolition and construction of new landing steps; and
·
Barging
Point enclosure and conveyor system.
The EM&A programme commenced on 4 April 2018.The impact EM&A for the Project includes
air quality and noise monitoring.
This is the
eighteenth monthly EM&A Report presenting the EM&A works carried out
during the period between 1 and 30 September 2019. As informed by the Contractor, major activities in
the reporting period were:
|
Locations
|
Site Activities
|
|
Kai Tak
|
·
Construction of ventilation adit,
·
Construction of at-grade road and associated backfilling
works,
·
ELS removal at ventilation adit,
·
Excavation works at Underpass,
·
Construction of New Right of Way,
·
Sheet pile removal at at-grade road,
·
Temporary Grouting
|
|
Ma Tau Kok
|
·
Temporary Traffic Management implementation
·
Soft Excavation,
·
Noise panel installation,
·
ELS installation & decking works for access shaft,
·
Precast segment installation at Landing Step
|
|
Kowloon Bay
|
·
Wall tie installation and temporary reclamation for stage 1
temporary reclamation,
·
Preparation work of K-frame tower and sliding system,
·
Excavation for stage 1 underwater tunnel
·
Temporary Grouting
|
|
Barging Point
|
·
Barging point operation (Spoil Disposal)
|
Breaches of Action and Limit Levels for Air Quality
All 24-hour TSP result was below the Action
and Limit Levels at all monitoring locations in the reporting month.
All 1-hour TSP result was below the Action and
Limit Levels at all monitoring locations in the reporting month.
Breaches of Action and Limit Levels for Noise
Regular Noise Monitoring
No Action Level exceedance was recorded since
no noise related complaint was received in the reporting month.
No
exceedance of Limit Level of noise was recorded in the reporting month.
Complaint, Notification of Summons and Successful Prosecution
No
environmental related complaint, notification of summons and successful
prosecution were received in the reporting month.
No notification of summons and successful
prosecution were received in the reporting month.
Reporting Changes
There was no
reporting change in the reporting month.
Future Key Issues
Key issues to be
considered in the next three months included:
|
Locations
|
Site Activities
|
|
Kai Tak
|
·
Temporary working platform installation at underpass and
depressed road,
·
Base slab and wall construction at underpass,
·
Backfilling works at ventilation adit,
·
Excavation and ELS installation at cut & cover tunnel,
depressed road and underpass
·
Temporary Grouting
|
|
Ma Tau Kok
|
·
Temporary Traffic Management implementation
·
Soft and rock excavation,
·
ELS installation for access shaft
·
Pipe piling works for cut and cover tunnel
·
Existing drainage diversion works,
·
Fresh water pipe installation works,
·
Pre-case segment installation and backfill at Landing Step
|
|
Kowloon Bay
|
·
Wall tie installation and temporary reclamation for stage 1
temporary reclamation,
·
Excavation D5for stage 1 underwater tunnel,
·
Cradle construction,
·
K-frame tower and sliding system installation,
·
Truss fabrication and installation,
·
Seawall Removal,
·
Temporary Grouting
|
|
Barging Point
|
·
Barging point operation (Spoil Disposal)
|
Potential environmental impacts
arising from the above construction activities are mainly associated with construction
dust, construction noise, water pollution control, and waste management.
Gammon
Construction Limited was commissioned by the Highways Department as the
Civil Contractor for Works Contract HY/2014/07. AECOM Asia Company Limited
(AECOM) was appointed by Gammon Construction Limited as the Environmental Team
(ET) to undertake the Environmental Monitoring and Audit (EM&A) programme
during construction phase of the Project.
1.1.1
This is the eighteenth monthly EM&A
Report which summarizes the impact monitoring results and audit
findings for the Project during the reporting period between 1 and 30 September
2019.
1.2.1
This monthly EM&A Report is organized as
follows:
·
Section 1:
Introduction
·
Section 2:
Project Information
·
Section 3:
Environmental Monitoring Requirement
·
Section 4:
Implementation Status of Environmental Mitigation Measures
·
Section 5:
Monitoring Results
·
Section 6:
Environmental Site Inspection and Audit
·
Section 7: Environmental Non-conformance
·
Section 8:
Future Key Issues
·
Section 9:
Conclusions and Recommendations
2.1.1
CKR is a dual 3-lane trunk road
across central Kowloon linking the West Kowloon in the west and the Kai Tak
Development (KTD) in the east. The CKR will be about 4.7 km long with an
underground tunnel section of about 3.9 km long, in particular, there will be
an underwater tunnel of about 370 m long in Kowloon Bay to the north of the To
Kwa Wan Typhoon Shelter. It will connect the West Kowloon Highway at Yau Ma Tei
Interchange with the road network at Kowloon Bay and the future Trunk Road T2
at KTD which will connect to the future Tseung Kwan O – Lam Tin Tunnel
(TKO-LTT) and Cross Bay Link (CBL). CKR, Trunk Road T2 and TKO-LTT will form a
strategic highway link, namely Route 6, connecting West Kowloon and Tseung Kwan
O. In addition, 3 ventilation buildings, which will be located in Ya Ma Tei, Ho
Man Tin and ex-Kai Tak airport area, are proposed to ensure acceptable air
quality within the tunnel.
2.1.2
The Environmental Impact Assessment (EIA)
Report for Central Kowloon Route (Register
No.: AEIAR-171/2013) was approved on 11 July 2013 under the Environmental
Impact Assessment Ordinance (EIAO). Following the approval of the EIA Report,
an Environmental Permit (EP) for CKR was granted on 9 August 2013 (EP No.: EP-
457/2013) for the construction and operation. Variation of EP (VEP) was
subsequently applied and the latest EP (EP No. EP-457/2013/C) was issued by the
Director of Environmental Protection (DEP) on 16 January 2017. Further
Environmental Permit (EP No. FEP-01/457/2013/C) for CKR – Kai Tak West was
issued on 28 February 2018.
2.1.3
The
construction of the CKR had been divided into different sections. This Work
Contract HY/2014/07 – Kai Tak West (KTW) (“The Project”) will include a road which is a trunk road, including new roads, and major
extensions or improvements to existing roads; a road fully enclosed by decking
above and by structure on the sides for more than 100 m; and reclamation works
(including associated dredging works) more than 1 ha in size and a boundary of
which is less than 100 m from an existing residential area.
2.1.4

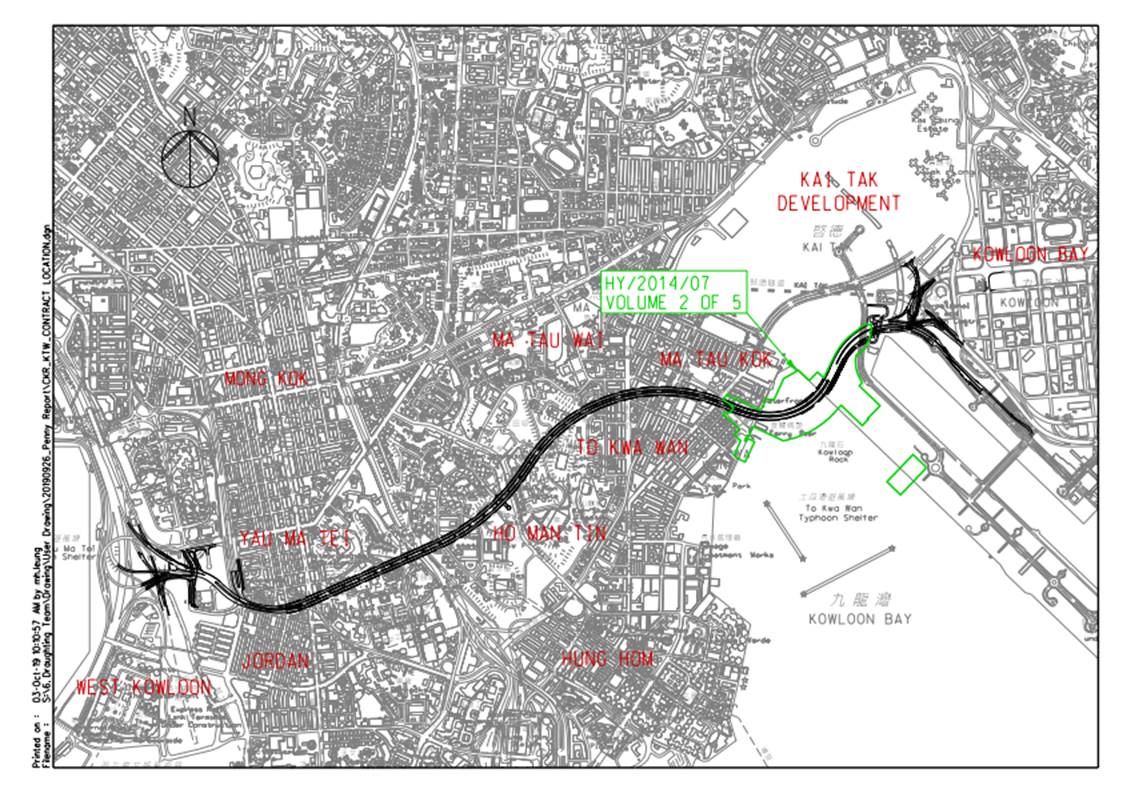

The site layout plan of the
Project is shown in Figure 1.1.
2.2.1
The major construction activities
under this Project include:
(a) construction of approximately 160m long cut-and-cover tunnel and
370m long underwater tunnel between the tunnel section at Ma Tau Kok and the
depressed road of the CKR within Kai Tak Development;
(b) reconstruction of the seawall at Ma Tau Kok public pier, and the
sloping seawall at the Former Kai Tak Airport Runway;
(c) construction of approximately 125m long depressed road and 200m
long underpass of the CKR within Kai Tak Development;
(d) construction of approximately 360m long underground tunnel
ventilation adit of the CKR;
(e) reconstruction of Kowloon City Ferry Pier Public Transport
Interchange; and
(f)
other associated works.
2.3.1
The major construction activities
undertaken in the reporting month are summarized in Table 2.1.
Table 2.1 Construction Activities in the reporting month
|
Locations
|
Site Activities
|
|
Kai
Tak
|
·
Construction of ventilation adit,
·
Construction of at-grade road and associated backfilling
works,
·
ELS removal at ventilation adit,
·
Excavation works at Underpass,
·
Construction of New Right of Way,
·
Sheet pile removal at at-grade road,
·
Temporary Grouting
|
|
Ma
Tau Kok
|
·
Temporary Traffic Management implementation
·
Soft Excavation,
·
Noise panel installation,
·
ELS installation & decking works for access shaft,
·
Precast segment installation at Landing Step
|
|
Kowloon
Bay
|
·
Wall tie installation and temporary reclamation for stage 1
temporary reclamation,
·
Preparation work of K-frame tower and sliding system,
·
Excavation for stage 1 underwater tunnel
·
Temporary Grouting
|
|
Barging
Point
|
·
Barging point operation (Spoil
Disposal)
|
2.3.2
The
construction programme is presented in Appendix A.
2.4.1
The project organization structure is shown in Appendix
B. The key personnel contact names and numbers for the Project
are summarized in Table 2.2.
Table 2.2 Contact Information of Key Personnel
|
Party
|
Role
|
Position
|
Name
|
Telephone
|
Fax
|
|
Arup-Mott
MacDonald Joint Venture
|
Residential
Engineer (ER)
|
Engineer’s
Representative
|
Mr. Jeffrey
Lau
|
2268 3640
|
2268 3954
|
|
ERM
|
Independent
Environmental Checker (IEC)
|
Independent
Environmental Checker
|
Ms. Mandy To
|
2271 3313
|
2723 5660
|
|
Gammon
|
Contractor
|
Contracts Manager
|
Mr. Alan Yan
|
2516 8823
|
2516 6260
|
|
Environmental Manager
|
Ms Michelle Tang
|
9267 8866
|
2516 6260
|
|
Environmental Officer
|
Ms. Phoebe Ng
|
9869 1105
|
|
AECOM
|
Contractor’s
Environmental Team (ET)
|
ET Leader
|
Mr. Y T Tang
|
3922 9392
|
2317 7609
|
2.5.1 Relevant environmental licenses, permits
and/or notifications on environmental protection for this Project and valid in
the reporting month are summarized in Table 2.3.
Table 2.3 Status of Environmental Licenses, Notifications and Permits
|
Permit / License No. / Notification/
Reference No.
|
Valid Period
|
Status
|
Remarks
|
|
From
|
To
|
|
Further
Environmental Permit
|
|
FEP-01/457/2013/C
|
28 Feb 2018
|
End of Project
|
Valid
|
--
|
|
Wastewater
Discharge License
|
|
WT00030290-2018
|
22 Mar 2018
|
31 May 2023
|
Valid
|
Ma Tau Kok
|
|
WT00030668-2018
|
27 Apr 2018
|
30 Apr 2023
|
Valid
|
Site Office at
Kai Tak West
|
|
WT00030358-2018
|
27 Apr 2018
|
30 Apr 2023
|
Valid
|
Kai Tak West
|
|
WT00030333-2018
|
27 Apr 2018
|
30 Apr 2023
|
Valid
|
Barging Point
at Portions 4B & 4C
|
|
WT00030330-2018
|
27 Apr 2018
|
30 Apr 2023
|
Valid
|
Kowloon Bay
|
|
Construction
Noise Permit
|
|
PP-RE0021-19
|
20 May 2019
|
15 Nov 2019
|
Valid
|
Percussive
Piling at Stage 1 Temporary Reclamation Area
|
|
GW-RE0632-19
|
27 Aug 2019
|
26 Feb 2020
|
Valid
|
Barging Point
Operation at Kai Tak Barging Point
|
|
GW-RE0599-19
|
7 Aug 2019
|
30 Jan 2020
|
Superseded by
GW-RE740-19 on 20 Sep 2019
|
Welding,
Pumping Test and System at Ma Tau Kok
|
|
GW-RE0740-19
|
20 Sep 2019
|
19 Dec 2019
|
Valid on 20
Sep 2019
|
Welding,
Pumping Test and System at Ma Tau Kok
|
|
GW-RS0524-19
|
5 July 2019
|
4 Jan 2020
|
Valid
|
General Works
at Kai Tak
|
|
GW-RE0595-19
|
30 Jul 2019
|
29 Sep 2019
|
Valid until 29
Sep 2019
|
Welding and
backfilling at Stage 1 Underwater Tunnel
|
|
PP-RE0010-19
|
1 Apr 2019
|
30 Sep 2019
|
Valid
|
Percussive
Piling at Kai Tak Area (at grade road and underpass)
|
|
Chemical Waste Producer Registration
|
|
5118-247-G2347-47
|
30 Jan 2018
|
End of Project
|
Valid
|
--
|
|
5118-247-G2347-48
|
30 Jan 2018
|
End of Project
|
Valid
|
--
|
|
Marine Dumping Permit
|
|
EP/MD/20-043
|
30 Aug 2019
|
29 Sep 2019
|
Valid until 20 Sep 2019
|
Sediments requiring Type 1 (Dedicated Site) and Type 2 Confined Marine
Disposal
|
|
EP/MD/20-066
|
30 Sep 2019
|
29 Oct 2019
|
Valid on 30 Sep 2019
|
Sediments requiring Type 1 (Dedicated Site) and Type 2 Confined Marine
Disposal
|
|
Billing
Account for Construction Waste Disposal
|
|
7029909
|
22 Jan 2018
|
End of Project
|
Account Active
|
--
|
|
7031949
|
3 Jul 2019
|
4 Oct 2019
|
Account Active
|
Billing Account for Disposal of
Construction Waste (by vessels)
|
|
Notification
Under Air Pollution Control (Construction Dust) Regulation
|
|
429442
|
5 Jan 2018
|
5 Jul 2025
|
Notified
|
--
|
Monitoring Requirements
3.1.1 In accordance with the approved EM&A Manual,
measurement of 24-hour and 1-hour Total Suspended Particulates (TSP) level at
the designated air quality monitoring station is required. Impact 24-hour TSP
monitoring should be carried out for at least once every 6 days, and 1-hour TSP monitoring should be done at least 3 times
every 6 days while the highest dust impact is expected. The Action and Limit
Levels of the air quality monitoring is provided in Appendix
D.
Monitoring Equipment
3.1.2 24-hour TSP air
quality monitoring was performed using High Volume Sampler (HVS) located at the
designated monitoring station. The HVS meets all the requirements of the
EM&A Manual.
3.1.3 A portable
direct reading dust meter was used to carry out the 1-hour TSP monitoring.
3.1.4 Brand and model
of the equipment is given in Table 3.1.
Table 3.1 Air Quality Monitoring
Equipment
Monitoring Locations
3.1.5
The monitoring station for construction dust
monitoring pertinent to the Project has been identified based on the approved
EM&A Manual for the Project. The location of
the construction dust monitoring station is summarized in Table 3.2 and shown in Figure
3.1.
Table 3.2 Location of Construction Dust
Monitoring Station
|
Location
|
Monitoring Station
|
Description
|
|
E-A14a
[1]
|
Block
B of Merit Industrial Centre
|
Rooftop
(13/F)
|
Note:
[1] The air monitoring station
proposed in the EM&A Manual (i.e. Wyler Gardens with ID: E-A14) was not
available for impact dust monitoring, therefore impact monitoring was conducted
at E-A14a as an alternative which was agreed by the ER, IEC and EPD.
Monitoring
Methodology
3.1.6 24-hour TSP Monitoring
(a)
The HVS was
installed in the vicinity of the air sensitive receivers. The following criteria were considered in the
installation of the HVS as far as practicable:-
(i)
A horizontal platform with
appropriate support to secure the sampler against gusty wind was provided.
(ii)
Two samplers should
not be placed less than 2m apart from each other;
(iii)
The distance between the HVS and
any obstacles, such as buildings, was at least twice the height that the
obstacle protrudes above the HVS.
(iv)
A minimum of 2 meters separation
from walls, parapets and penthouse for rooftop sampler.
(v)
A minimum of 2 meters separation
from any supporting structure, measured horizontally is required.
(vi)
No furnace or incinerator flues
nearby.
(vii)
Airflow around the sampler was
unrestricted.
(viii)
The sampler was located more than
20 meters from any dripline.
(ix)
Any wire fence and gate, required
to protect the sampler, did not obstruct the monitoring process.
(x)
Permission was obtained to set up
the samplers and access to the monitoring station.
(xi)
A secured supply of electricity
was obtained to operate the sampler.
(b)
Preparation
of Filter Papers
(i)
Glass fibre filters, G810 were
labelled and sufficient filters that were clean and without pinholes were
selected.
(ii)
All filters were equilibrated in
the conditioning environment for 24 hours before weighing. The conditioning
environment temperature was around 25 °C and not variable by more than ±3 °C;
the relative humidity (RH) was < 50% and not variable by more than ±5%. A
convenient working RH was 40%.
(iii)
All filter papers were prepared
and analysed by ALS Technichem
(HK) Pty Ltd., which is a HOKLAS accredited laboratory and has comprehensive quality assurance and quality control programmes.
(c)
Field
Monitoring
(i)
The power
supply was checked to ensure the HVS works properly.
(ii)
The filter holder and the area
surrounding the filter were cleaned.
(iii)
The filter holder was removed by
loosening the four bolts and a new filter, with stamped number upward, on a
supporting screen was aligned carefully.
(iv)
The filter was properly aligned
on the screen so that the gasket formed an airtight seal on the outer edges of
the filter.
(v)
The swing bolts were fastened to
hold the filter holder down to the frame.
The pressure applied was sufficient to avoid air leakage at the edges.
(vi)
Then the shelter lid was closed
and was secured with the aluminium strip.
(vii)
The HVS was warmed-up for about 5
minutes to establish run-temperature conditions.
(viii)
A new flow rate record sheet was
set into the flow recorder.
(ix)
On site temperature and
atmospheric pressure readings were taken and the flow rate of the HVS was
checked and adjusted at around 1.3 m3/min, and complied with the
range specified in the EM&A Manual (i.e. 0.6-1.7 m3/min).
(x)
The programmable digital timer
was set for a sampling period of 24 hrs, and the starting time, weather
condition and the filter number were recorded.
(xi)
The initial elapsed time was
recorded.
(xii)
At the end of sampling, on site
temperature and atmospheric pressure readings were taken and the final flow
rate of the HVS was checked and recorded.
(xiii)
The final elapsed time was
recorded.
(xiv)
The sampled filter was removed
carefully and folded in half length so that only surfaces with collected
particulate matter were in contact.
(xv)
It was then placed in a clean
envelope and sealed.
(xvi)
All monitoring information was
recorded on a standard data sheet.
(xvii) Filters were then sent to ALS
Technichem (HK) Pty Ltd. for analysis.
(d)
Maintenance
and Calibration
(i)
The HVS and its accessories were maintained in good working condition, such as
replacing motor brushes routinely and checking electrical wiring to ensure a
continuous power supply.
(ii)
HVSs were calibrated using
TE-5025A Calibration Kit upon installation and thereafter at bi-monthly
intervals.
(iii)
Calibration certificate of the TE-5025A Calibration Kit and the HVSs are provided in
Appendix
E.
3.1.7 1-hour TSP Monitoring
(a)
Measuring Procedures
The measuring procedures of the 1-hour dust meter
are in accordance with the Manufacturer’s Instruction Manual as follows:
(i)
Turn the power on.
(ii)
Close the air collecting opening cover.
(iii)
Push the “TIME SETTING” switch to [BG]
(iv)
Push “START/STOP”
switch to perform background measurement for 6 seconds.
(v)
Turn the knob at SENSI ADJ position to insert
the light scattering plate.
(vi)
Leave the equipment for 1 minute upon “SPAN
CHECK” is indicated in the display.
(vii)
Push “START/STOP” switch to perform automatic
sensitivity adjustment. This measurement takes 1 minute.
(viii)
Pull out the knob and return it to MEASURE
position.
(ix)
Push the “TIME SETTING” switch the time set
in the display to 3 hours.
(x)
Lower down the air collection opening cover.
(xi)
Push “START/STOP” switch to start
measurement.
(b)
Maintenance and
Calibration
(i)
The 1-hour TSP meter
was calibrated at 1-year intervals against a continuous particulate TEOM
Monitor, Series 1400ab. Calibration certificates of the Laser Dust Monitors are
provided in Appendix
E.
Monitoring Schedule for the
Reporting Month
3.1.8
The schedule for environmental
monitoring in September 2019 is provided in Appendix
F.
Monitoring Requirements
3.2.1 In accordance with the EM&A Manual, impact noise monitoring should be conducted for
at least once a week during the construction phase of the Project. Table 3.3 summarizes the monitoring parameters, frequency and
duration of impact noise monitoring. The Action and Limit Levels of the noise
monitoring is provided in Appendix
D.
Table 3.3 Noise Monitoring
Parameters, Frequency and Duration
|
Parameter and Duration
|
Frequency
|
|
30-mins
measurement at each monitoring station between 0700 and 1900 on normal
weekdays. Leq, L10 and L90 would be
recorded.
|
At least once per week
|
Monitoring
Equipment
3.2.2 Noise
monitoring was performed using sound level meter at each designated monitoring
station. The sound level meters deployed
comply with the International Electrotechnical Commission Publications (IEC)
651:1979 (Type 1) and 804:1985 (Type 1) specifications. Acoustic calibrator was deployed to check the
sound level meters at a known sound pressure level. Brand and model of the equipment is given in Table 3.4.
Table 3.4 Noise Monitoring Equipment
for Regular Noise Monitoring
Monitoring Locations
3.2.3
The monitoring stations for construction noise
monitoring pertinent to the Project have been identified based on the approved
EM&A Manual for the Project.
Locations of the noise monitoring stations are summarized in Table 3.5 and shown in Figure 3.2.
Table 3.5 Noise Monitoring Stations
during Construction Phase
|
Location
|
Monitoring Station
|
Description
|
Measurement
|
|
E-N12a [1]
|
19 Hing Yan Street
|
Rooftop (9/F)
|
Façade
|
|
E-N21a [1]
|
Block B of Merit Industrial Centre
|
Rooftop (13/F)
|
Free field [2]
|
Notes:
[1] The noise monitoring stations proposed in
the EM&A Manual (i.e. Grand Waterfront Tower 3 with ID: E-N12 and Hang
Chien Court Block J with ID: E-N21) were not available for impact noise
monitoring, therefore impact monitoring was conducted at E-N12a and E-N21a as
an alternative which was
agreed by the ER, IEC and EPD.
[2] A
correction of +3 dB(A) was made to the free field measurements.
Monitoring
Parameters, Frequency and Duration
3.2.4 Table 3.6 summarizes the monitoring
parameters, frequency and duration of impact noise monitoring.
Table 3.6 Noise Monitoring Parameters, Frequency and Duration
|
Location
|
Parameter and Duration
|
Frequency
|
|
E-N12a and E-N21a
|
30-mins measurement at each monitoring
station between 0700 and 1900 on normal weekdays. Leq, L10
and L90 would be recorded.
|
At
least once per week
|
Monitoring Methodology
3.2.5 Monitoring Procedure
(a)
The sound level meter was set on
a tripod at a height of 1.2 m above the ground.
(b)
Façade measurement was made at
E-N12a.
(c)
Free field measurements was made
at monitoring location E-N21a. A correction of +3 dB(A) shall be made to the
free field measurements.
(d)
The battery condition was checked to ensure the correct functioning
of the meter.
(e)
Parameters such as frequency
weighting, the time weighting and the measurement time were set as follows:
(i)
frequency weighting: A
(ii)
time weighting: Fast
(iii)
time measurement: Leq(30-minutes)
during non-restricted hours i.e. 0700 – 1900 on normal weekdays.
(f)
Prior to and after each noise
measurement, the meter was calibrated using the acoustic calibrator for 94
dB(A) at 1000 Hz. If the difference in
the calibration level before and after measurement was more than 1 dB(A), the
measurement would be considered invalid and repeat of noise measurement would
be required after re-calibration or repair of the equipment.
(g)
During the monitoring period, the
Leq, L10 and L90 were recorded. In addition, site conditions and noise
sources were recorded on a standard record sheet.
(h)
Noise measurement was paused
during periods of high intrusive noise (e.g. dog barking, helicopter noise) if
possible. Observations were recorded when intrusive noise was unavoidable.
(i)
Noise monitoring was cancelled in
the presence of fog, rain, wind with a steady speed exceeding 5m/s, or wind
with gusts exceeding 10m/s.
3.2.6 Maintenance and Calibration
(a)
The
microphone head of the sound level meter was cleaned with soft
cloth at regular intervals.
(b)
The meter
and calibrator were sent to the supplier or HOKLAS laboratory to check and
calibrate at yearly intervals.
(c)
Calibration
certificates of the sound level meters and acoustic calibrators are
provided in Appendix E.
Monitoring Schedule for the
Reporting Month
3.2.7
The schedule for environmental
monitoring in September 2019 is provided in Appendix F.
3.3
Landscape
and Visual
3.3.1
As per the EM&A Manuals, the landscape and visual mitigation
measures shall be implemented and site inspections should be undertaken once
every two weeks during the construction period. A summary of the implementation
status is presented in Section 6.
4.1.1 The Contractor
has implemented environmental mitigation measures and requirements as stated in
the EIA Reports, the EP and EM&A Manuals. The implementation status of the
environmental mitigation measures during the reporting period is summarized in Appendix C.
Status of required submissions under the EP during the
reporting period is summarised in Table 4.1.
Table 4.1 Status of Required Submission under Environmental Permit
|
EP Condition
|
Submission
|
Submission
Date
|
|
Condition 3.4 of
EP- 457/2013/C
and
Condition 3.4 of
FEP-01/457/2013/C
|
Monthly EM&A Report for
August 2019
|
14 September 2019
|
5.1.1 The
monitoring results for 24-hour TSP and 1-hour TSP are summarized in Table 5.1 and
Table 5.2
respectively. Detailed air
quality monitoring results and daily
extract of meteorological observations are presented in Appendix
G.
Table 5.1 Summary of 24-hour TSP
Monitoring Result in the Reporting Period
|
ID
|
Average (mg/m3)
|
Range (mg/m3)
|
Action Level (mg/m3)
|
Limit Level (mg/m3)
|
|
E-A14a
|
39.1
|
17.4 – 71.0
|
197.3
|
260
|
Table 5.2 Summary of 1-hour TSP
Monitoring Result in the Reporting Period
|
ID
|
Average (mg/m3)
|
Range (mg/m3)
|
Action Level (mg/m3)
|
Limit Level (mg/m3)
|
|
E-A14a
|
65.1
|
61.1 – 70.9
|
302.4
|
500
|
5.1.2
No Action and
Limit Level exceedance was recorded for 24-hour TSP monitoring at the monitoring location in the reporting month.
5.1.3
No Action and
Limit Level exceedance was recorded for 1-hour TSP monitoring at the monitoring location in the reporting month.
5.1.4
The event and action plan is
annexed in Appendix
I.
5.1.5 Major dust
sources during the monitoring included construction dust and nearby traffic
emission.
5.2.1 The monitoring
results for noise are summarized in Table 5.3 and the monitoring data is provided in Appendix
H.
Table 5.3 Summary of
Construction Noise Monitoring Results in the Reporting Period
|
ID
|
Range, dB(A), Leq (30
mins)
|
Limit Level, dB(A), Leq
(30 mins)
|
|
E-N12a
|
66.9
– 69.1
|
75
|
|
E-N21a
|
61.7
– 69.7
|
75
|
5.2.2
No noise complaint
was received in the reporting month; hence, no Action Level exceedance was
recorded.
5.2.3
No Limit Level exceedance of
noise was recorded at the monitoring station in the reporting month.
5.2.4
The event and action plan is
annexed in Appendix
I.
5.2.5
Major noise sources during the
monitoring included construction noise from the Project site and nearby traffic
noise.
5.3.1
C&D materials and wastes sorting were carried
out on site. Receptacles were available for C&D wastes and general refuse collection.
5.3.2 According to the Contractor’s information, the
concerned soil, which assessed under the updated Supplementary Contamination Assessment Report,
had been excavated in August 2019. In order to minimize the potentially adverse
environmental impacts arising for the handling of potentially contaminated
materials, the following environmental mitigation measures are proposed during
the course soil excavation, stockpiling and backfilling works:
l Excavation profiles
must be properly designed and executed.
l Stockpiling site(s)
shall be lined with impermeable sheeting and bunded. Stockpiles shall be fully
covered by impermeable sheeting to reduce dust emission.
l Excavation and
stockpiling should be carried out during dry season as far as possible to
minimise potentially contaminated runoffs from the Concerned Soil.
l Regular site audit
will be conducted under the Environmental Monitoring and Audit (EM&A) programme
to ensure the soil excavation, stockpiling and backfilling works are carried
out in accordance with this report.
Findings of the site audit will be presented in Table 6.1.
l The truck
transferring Concerned Soil shall be covered entirely by impervious sheeting to
ensure that the dusty materials do not leak from the truck.
5.3.3
As advised by the Contractor, Total 33,631 m3 of
inert C&D
material was generated, 1,340 m3 inert C&D
material was disposed at the Public Fills, 6,899 m3 was reused in
the Contract and 25,392 m3 was reused in other contract in the
reporting month. 39,580 kg general refuse was generated and sent to NENT
Landfill in the reporting month. No metals, plastics and
paper/cardboard packaging were collected by recycle contractor in the reporting
month. 1,600 L of chemical waste was collected by
licensed contractor in the reporting period. 1,465 m3
of Type 2 and No Type 1
and 3 Marine sediment were disposed at Confined Marine Disposal Facility to the
East of Sha Chau. The waste flow
table is annexed in Appendix
K.
5.3.4 The Contractor
is advised to properly maintain on site C&D materials and wastes
collection, sorting and recording system and maximize reuse / recycle of
C&D materials and wastes. The Contractor is reminded to properly maintain
the site tidiness and dispose of the wastes accumulated on site regularly and
properly.
5.3.5 The Contractor
is reminded that chemical waste containers should be properly treated and
stored temporarily in designated chemical waste storage area on site in
accordance with the Code of Practise on the Packaging, Labelling and Storage of
Chemical Wastes.
5.4.1
Bi-weekly
inspection of the implementation of landscape and visual mitigation measures
was conducted on 11 and 25 September 2019. A
summary of the site inspection is provided in Appendix C. The observations and recommendations made during the site inspections are presented in Table 6.1.
6.1.1 Site inspections were carried out on a weekly basis to monitor the
implementation of proper environmental pollution control and mitigation
measures for the Project. A summary of the mitigation measures implementation
schedule is provided in Appendix
C.
6.1.2
In the reporting month, 4 site inspections
were carried out on 4, 11, 18 and 25 September 2019. Joint inspections with the IEC, ER, the Contractor
and the ET were conducted on 18 September 2019.
In addition, no joint inspection with EPD, ER and the Contractor was conducted
in September 2019 to check the compliance of the dumping permit condition. No
non-compliance was recorded during the site inspection. Details of observations
recorded during the site inspections are presented in Table 6.1.
Table 6.1 Observations and
Recommendations of Site Audit
|
Parameters
|
Date
|
Observations and Recommendations
|
Follow-up
|
|
Air
Quality
|
11 September 2019
|
· Dust emission was
observed during the vehicle movement at the haul road of Kai Tak. The
Contractor was reminded to provide water spraying regularly on haul road for
dust suppression.
|
The item was
rectified by the Contractor on 12 Sep 2019.
|
|
Noise
|
11 September 2019
|
Reminder:
· The Contractor
was reminded to wrap the breaker head with the acoustic material to minimize
the noise impact at Kai Tak.
|
The item was
rectified by the Contractor on 12 Sep 2019.
|
|
Water
Quality
|
28 August 2019
|
· Accumulated
stagnant water was observed inside the drip tray under the air compressor at
Kai Tak. The Contractor was reminded to clean up the stagnant water inside
the drip tray for prevention of oil spillage.
|
The item was
rectified by the Contractor on 2 Sep 2019.
|
|
4 September 2019
|
Reminder:
· The Contractor
was reminded to pump out the accumulated muddy water in timely manner at Ma
Tau Kok and Landing Step Area to avoid the muddy water run out from site
without any treatment.
|
The item was
rectified by the Contractor on 12 Aug 2019.
|
|
11 September 2019
|
· Chemical
containers were observed stored without drip tray at Ma Tau Kok. The
Contractor was reminded to provide a drip tray for chemical storage.
|
The item was
rectified by the Contractor on 16 Sep 2019.
|
|
18 September 2019
|
· Part of silt
curtain which near the Steel Platform was observed dispersed. The Contractor
reminded to maintain enclosure for silt curtain properly.
|
The item was
rectified by the Contractor on 26 Sep 2019.
|
|
25 September 2019
|
· Chemical
containers stored without drip tray were observed at Ma Tau Kok and Steel
Platform site area. The Contractor should provide a drip tray for storage
chemical containers properly.
|
The item was
rectified by the Contractor on 30 Sep 2019.
|
|
Waste/
Chemical Management
|
11 September 2019
|
Reminder:
· The Contractor
was reminded to remove the stagnant water inside the drip tray for oil
spillage prevention at Steel Platform and Ma Tau Kok.
|
The item was
rectified by the Contractor on 17 Sep 2019.
|
|
25 September 2019
|
· Oil stain floating
on the marine surface was observed at Steel Platform area. The Contractor
should remove the oil stain and disposal of as chemical waste properly.
|
The item was
rectified by the Contractor on 30 Sep 2019.
|
|
Land
Contamination
|
Nil
|
Nil
|
Nil
|
|
Landscape
&
Visual
|
Nil
|
Nil
|
Nil
|
|
Permits/
Licenses
|
Nil
|
Nil
|
Nil
|
6.1.3
All of
follow-up actions requested by Contractor's ET and IEC during the site inspection
were undertaken as reported by the Contractor and confirmed in the following weekly site inspection
conducted during the reporting period. No follow-up action requested by EPD
during the site inspection in the reporting month.
6.2.1
All 24-hour TSP result was below
the Action and Limit Levels at all monitoring locations in the reporting month.
6.2.2
All 1-hour TSP result was below
the Action and Limit Levels at all monitoring locations in the reporting month.
6.2.3 No noise complaint was received in the reporting month; hence, no Action Level exceedance was recorded.
6.2.4
No Limit Level exceedance for
noise was recorded at all monitoring stations in the reporting month.
6.3.1
No environmental non-compliance
was recorded in the reporting month.
6.4.1 No
environmental related prosecution or notification of summons was received in
the reporting month. Cumulative statistics on notification of summons and
successful prosecutions is provided in Appendix
J.
6.5
Summary of Environmental
Summon and Successful Prosecutions
6.5.1 No environmental
related prosecution or notification of summons was received in the reporting
month. Cumulative statistics on notification of summons and successful
prosecutions is provided in Appendix
J.
7.1.1
The major construction works
between October and
December 2019 is provided in Table 7.1.
Table 7.1 Construction Activities in the coming three months
|
Locations
|
Site Activities
|
|
Kai
Tak
|
·
Temporary working platform installation at underpass and
depressed road,
·
Base slab and wall construction at underpass,
·
Backfilling works at ventilation adit,
·
Excavation and ELS installation at cut & cover tunnel,
depressed road and underpass
·
Temporary Grouting
|
|
Ma
Tau Kok
|
·
Temporary Traffic Management implementation
·
Soft and rock excavation,
·
ELS installation for access shaft
·
Pipe piling works for cut and cover tunnel
·
Existing drainage diversion works,
·
Fresh water pipe installation works,
·
Pre-case segment installation and backfill at Landing Step
|
|
Kowloon
Bay
|
·
Wall tie installation and temporary reclamation for stage 1
temporary reclamation,
·
Excavation D5for stage 1 underwater tunnel,
·
Cradle construction,
·
K-frame tower and sliding system installation,
·
Truss fabrication and installation,
·
Seawall Removal,
·
Temporary Grouting
|
|
Barging
Point
|
·
Barging point operation (Spoil
Disposal)
|
7.2.1
Potential environmental impacts
arising from the above construction activities are mainly associated with construction dust,
construction noise, and waste management.
7.3.1 The tentative schedule for environmental monitoring in September 2019 is provided in Appendix
F.
8.1.1
24-hour TSP and noise monitoring
were carried out in the reporting month.
8.1.2
All 24-hour TSP monitoring
results complied with the Action / Limit Level at in the reporting month.
8.1.3
All 1-hour TSP result was below
the Action and Limit Levels at all monitoring locations in the reporting month.
8.1.4
No Action Level exceedance was recorded since
no noise related complaint was received in the reporting month.
8.1.5
No Limit Level exceedance for noise was recorded at all monitoring stations in the reporting month.
8.1.6 4 nos. of environmental site inspections and
no site inspections with EPD were carried out in September 2019. Recommendations on remedial actions were given to the
Contractor for the deficiencies identified during the site audit.
8.1.7 Referring to the
Contractor's information, no environmental related complaint, notification of
summons and successful prosecution was received in the reporting month.
8.1.8
No notification of
summons and successful prosecution were received in the reporting month.
8.2.1
According to the environmental
site inspections performed in the reporting month, the following
recommendations were provided:
Air Quality Impact
· The Contractor was reminded to provide water
spraying regularly on haul road for dust suppression.
Construction Noise Impact
· The Contractor was reminded to wrap the
breaker head with the acoustic material to minimize the noise impact at Kai Tak
.
Water Quality Impact
· The Contractor was reminded to pump out the
accumulated muddy water in timely manner at Ma Tau Kok and Landing Step Area to
avoid the muddy water run out from site without any treatment.
· The Contractor was reminded to provide a drip
tray for chemical storage.
· The Contractor reminded to maintain enclosure
for silt curtain properly.
· The Contractor should provide a drip tray for
storage chemical containers properly.
Chemical and Waste Management
· The Contractor was reminded to remove the
stagnant water inside the drip tray for oil spillage prevention at Steel
Platform and Ma Tau Kok.
· The Contractor should remove the oil stain
and disposal of as chemical waste properly.
Landscape & Visual Impact
· No specific observation was identified in the
reporting month.
Permits/licenses
· No specific observation was identified in the
reporting month.
_10_10_19_files/image010.jpg)
_10_10_19_files/image011.jpg)
_10_10_19_files/image012.jpg)
_10_10_19_files/image013.jpg)
